SATPAK104GPS-25WATT

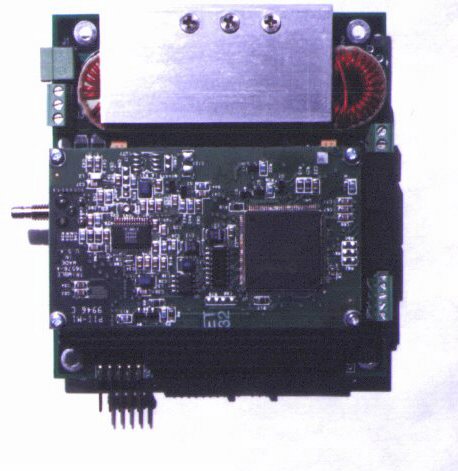

The SATPAK104GPS-25WATT is an advanced version of the popular SATPAK-104PLUS that also
incorporates a 25 Watt DC-DC converter on the same PC/104 module. In many PC/104
applications, the addition of the 25 Watt DC-DC converter combined with the GPS function
will eliminate a stack position that would otherwise require a dedicated PC/104 power
supply module. This concept provides an inexpensive method to interface a GPS receiver to
the PC/104 bus and provide power for the PC/104 bus and external peripherals. The
SATPAK104GPS-25WATT can be configured to mate with either a Trimble SK2/SK8 (Lassen),
Trimble ACEII/ACEIII, Trimble LassenLp, Navman Jupiter, Canadian Marconi Superstar II,
Motorola GT/UT Oncore, or Motorola M12 GPS receiver. The TTL communication signals of the
selected GPS receiver are transmitted and received over the PC/104 bus using a universal
asynchronous receiver transmitter (UART). The GPS receiver interface can be selected for
COM1, COM2, COM3, or COM4 base addresses via a simple push-on jumper. Custom addresses can
be supported. The associated PC/104 bus interrupt can be selected from IRQ3-IRQ7,
IRQ10-IRQ12, IRQ14, or IRQ15. A keep-alive voltage is generated by using a large value
capacitor (0.22 Farad) to maintain the almanac, ephemeris, and real-time clock of the GPS
receiver. A right angle 10-pin connector allows RS-232 communication to accommodate
differential GPS (DGPS) corrections or secondary communication with some models of GPS
(Trimble) receivers. The same connector also provides access to the 1PPS time pulse
generated by the GPS receiver. The 25 watt DC-DC converter accepts voltage inputs from 8V
to 40V and provides +5V as standard, and optional +12V, -12V, and -5V to power the PC/104
bus and external peripherals. The +5V output by the DC-DC converter is GPS compliant and
satisfies the ripple requirements of all GPS receiver modules that can be used with the
SATPAK104GPS-25WATT. The DC-DC converter is designed for vehicle applications and utilizes
a heavy duty "Load Dump" transient suppressor (5000V) that clamps input
transients to tolerable safe voltages. A low voltage AC input option is available. A
pass-through connector (P2) allows connection to an optional battery pack module.
Single quantity development kit prices shown below include SATPAK104GPS-25WATT
integrated and tested with desired GPS module, +/-12V option, magnetic mount antenna with
4 meter cable, development software toolkit for selected GPS module, and design reference
manual in electronic format for the selected GPS receiver. The development kit is a
total GPS solution for the PC/104 bus using the GPS receiver selected.
SATPAK104GPS-25WATT-TDEV-ACEIII Price is TBD
(with Trimble ACEIII module)
SATPAK104GPS-25WATT-LDEV-SK2 Price is TBD
(with Trimble SK2 module)
SATPAK104GPS-25WATT-JDEV-JUP Price is TBD
(with Navman Jupiter module)
SATPAK104GPS-25WATT-MDEV-M12 Price is TBD
(with Motorola M12 module)
SATPAK104GPS-25WATT-CDEV-CMC Price is TBD
(with Canadian Marconi SuperstarII)
SATPAK104GPS-25WATT-LPDEV-LP Price is TBD
(with Trimble LP module)
